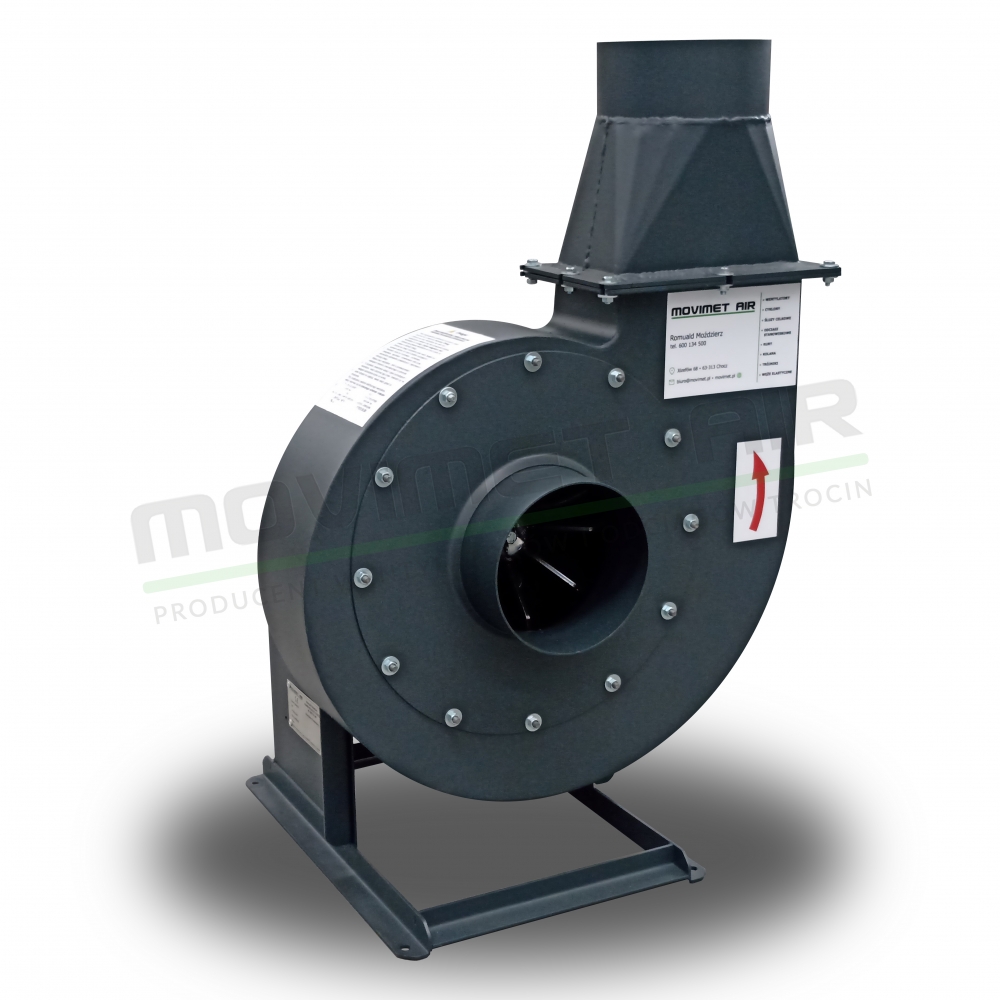

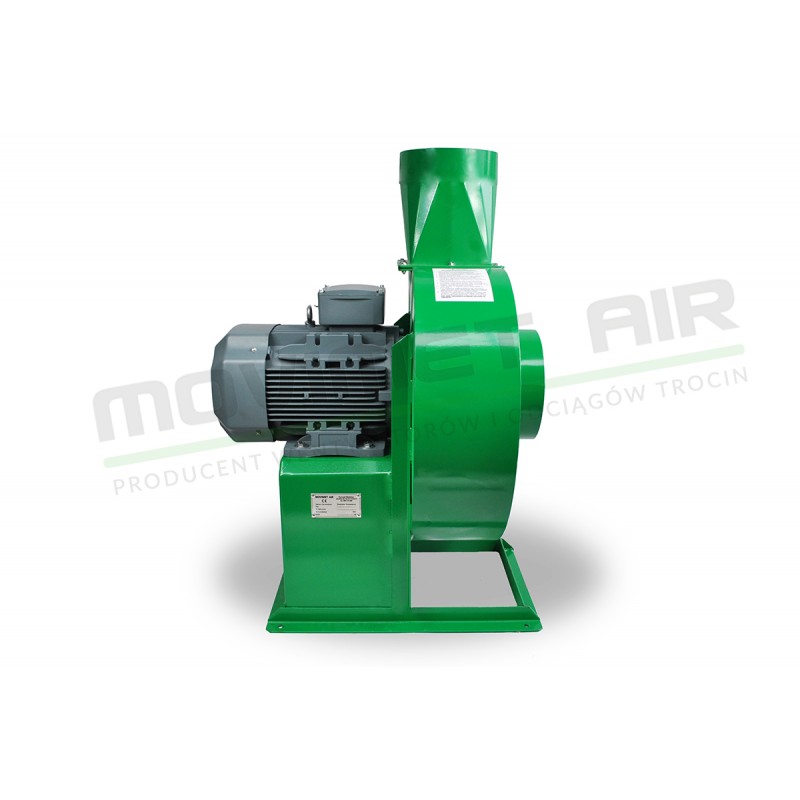

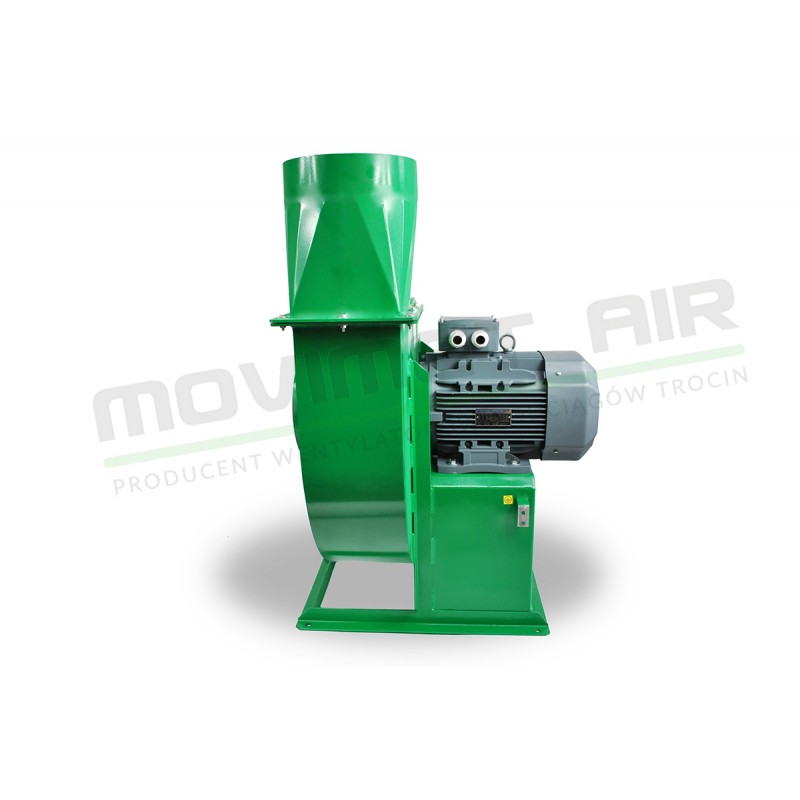

Transport fan WMT-5

Condition: New product

Transport fan of 5.5 kW in standard design.

Massive design, proven over the years, resistant to industrial working conditions.

Motor efficiency class: IE3 (Premium Efficiency).

More details

Out of stock.

4 907,70 zł tax incl.

3 990,00 zł tax excl.

Quantity

Color

More info

WMT-5 fans are designed for pneumatic transportation of sawdust, shavings, flakes, pellets, paper clippings, dried, leather, plastics and other similar bulk materials.

The fan must not be used in explosive atmospheres or for transporting gases or substances that threaten to explode.

The device is not suitable for pumping air containing corrosive or viscous contaminants.

Application of the WMT-5 fan

The WMT-5 is used in such industries as lumbering, carpentry, furniture manufacturing, paper industry and plastic processing and recycling. The most common application for this model is the extraction of chips from a four-sided planer, a tracked multi-saw or from several machines generating smaller amounts of sawdust/chips. In smaller plants, WMT-5 fans often work as central sawdust extraction and transport sawdust from machines to the cyclone.

Features of the WMT-5 fan

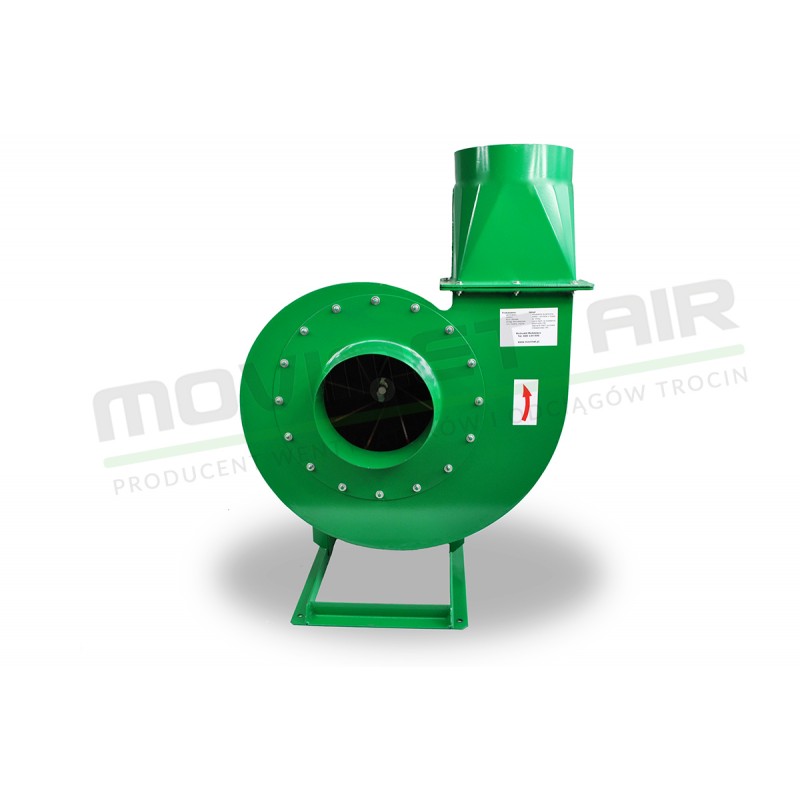

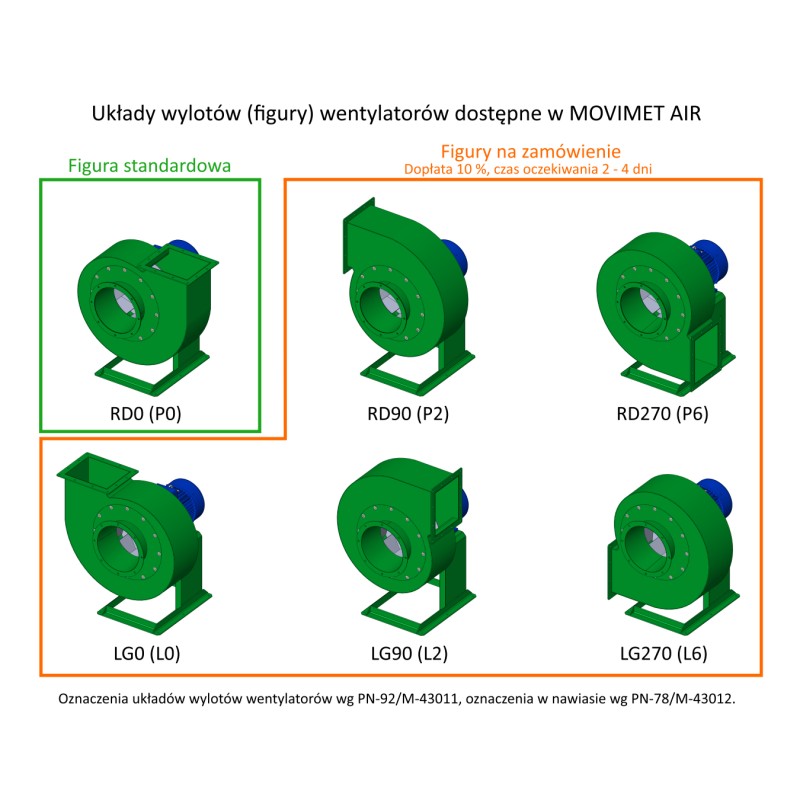

Fans in stock are available in the figure shown in the photos (RD 0). Other figures (rotation and/or mirror image) are made to order (please contact us by phone or email).

Note: the outlet adapter for round cross section is included in the price of the fan. This should be taken into account when comparing offers.

The fan is standard equipped with spigots for sliding the pipe, however, we can adapt the inlet and/or outlet of the fan to connect the pipe with a banded edge or to connect the pipe equipped with a flange/ring for screwing on 8 screws.

WMT fans are most often fed from control cabinets of machining machines. If the fan is to be powered independently, we recommend using switches equipped with thermal protection included in our offer.

The basic specification of the WMT-5 fan can be found in the table with technical parameters. If you have additional questions about the product, feel free to contact us.

WMT fans are available in standard version (without additional marking) and in modified versions, described in the table below.

Modifications can be combined, for example, WMT-5 WC H.

Modification designation	Characteristics	Example application
WC	Version with increased pressure	Transport of plastics, granulates, ground waste
H	Rotor with double-layer blades with wear-resistant steel caps, wear-resistant steel casing wrap	3-shift operation, recycling industry, transport of wood chips, high concentration of material
PO	Additional sealing to prevent vapor from the transported medium from reaching the motor bearings	Transport of wet film flake, extraction of steam from pellet cooler, transport of washer waste
PTO	Additional sealing and heat rejection to limit heat transfer to the motor	Pneumatic conveying at elevated temperatures (consider WMST or WMPT fans for more demanding applications)
K	Rectangular housing allowing installation in any orientation in space	Built-in operation in a larger system or unusual pipeline layout

Data sheet

Nominal inlet diameter [mm]	250
Nominal outlet diameter [mm].	250
Maximum pressure [Pa].	2900
Maximum theoretical capacity [m3/h]	9000
Maximum capacity [m3/h]	6200
Typowy punkt pracy	5000 m3/h, 2500 Pa
Rotor type	transportable, self-cleaning
Motor power [kW].	5.5
Power supply	3x400 V, 50 Hz
Engine speed [rpm].	2915
Engine efficiency class	IE3 (Premium Efficiency)
In the price of the product	outlet adapter for connecting round pipe
The product does not include	power cord and switch
Weight [kg].	approximately 125
Joining method	spigot for sliding the pipe
Max. temperature of the pumped medium	70 degrees Celsius
Work configuration	suction, discharge or suction and discharge
