15 kW fans - custom production

New product

Transport fans of 15 kW are priced and manufactured to order.

Standard capacities in our series are 11 kW and 18.5 kW. If possible, we recommend choosing WMT-11 or WMT-18 fans due to better availability from stock.

More details

More info

WMT-15 fan - application

WMT-15 fans are overwhelmingly used in central sawdust extractors and receive sawdust, shavings or dust from several machines or entire process lines. Typically, WMT-15 fans are connected to cyclones or filter stations that receive the transported material into tanks.

Very important in the purchase is the selection of the appropriate power and pressure characteristics of the fan. We recommend consulting with us on this issue before purchase.

WMT-15 fan - specifications

The basic technical data of the WMT-11 fan can be found in the table of technical parameters.

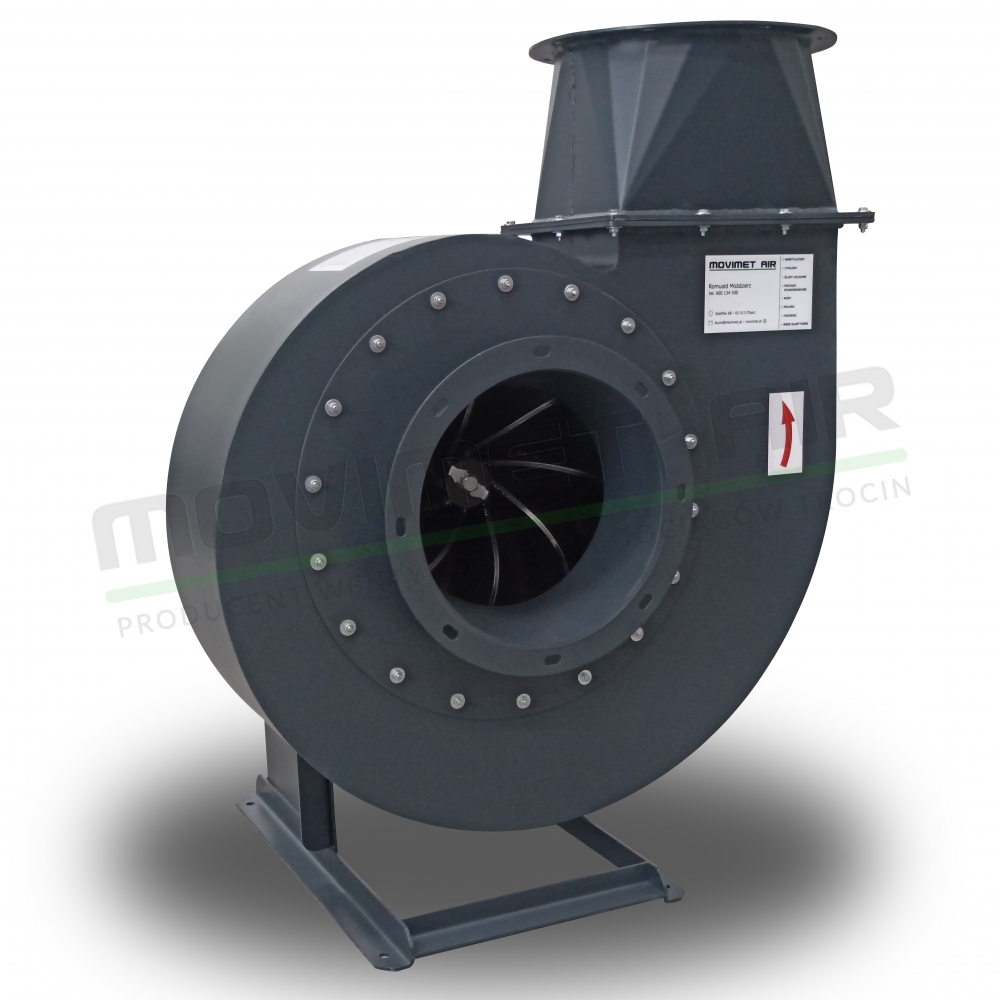

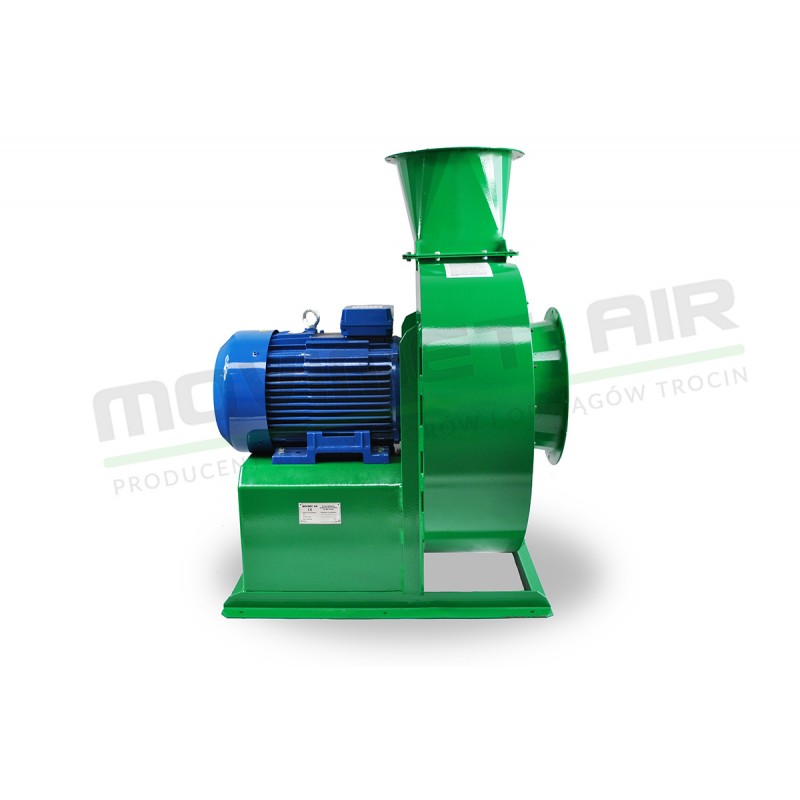

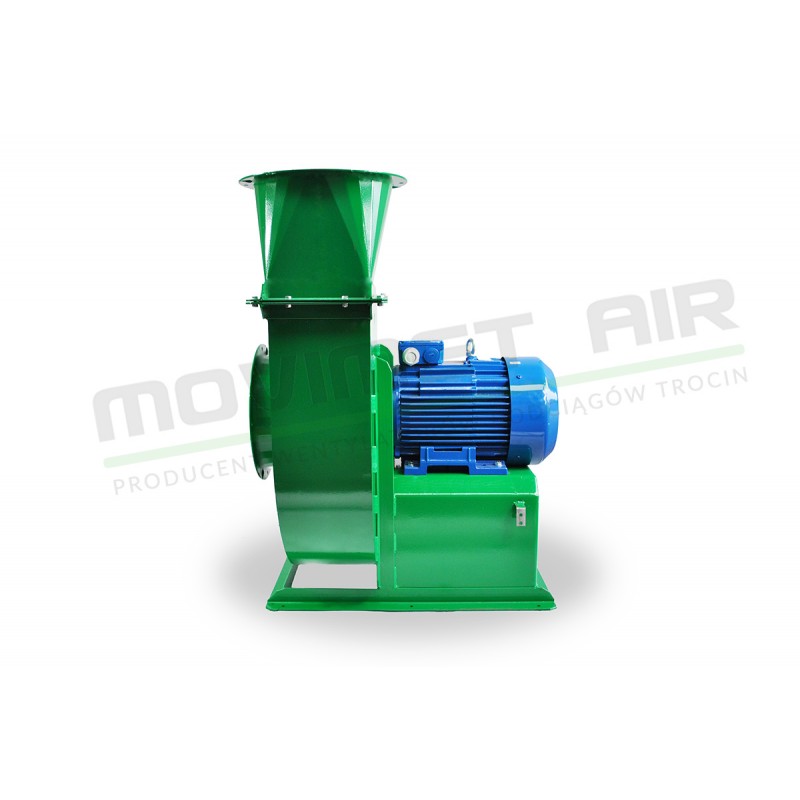

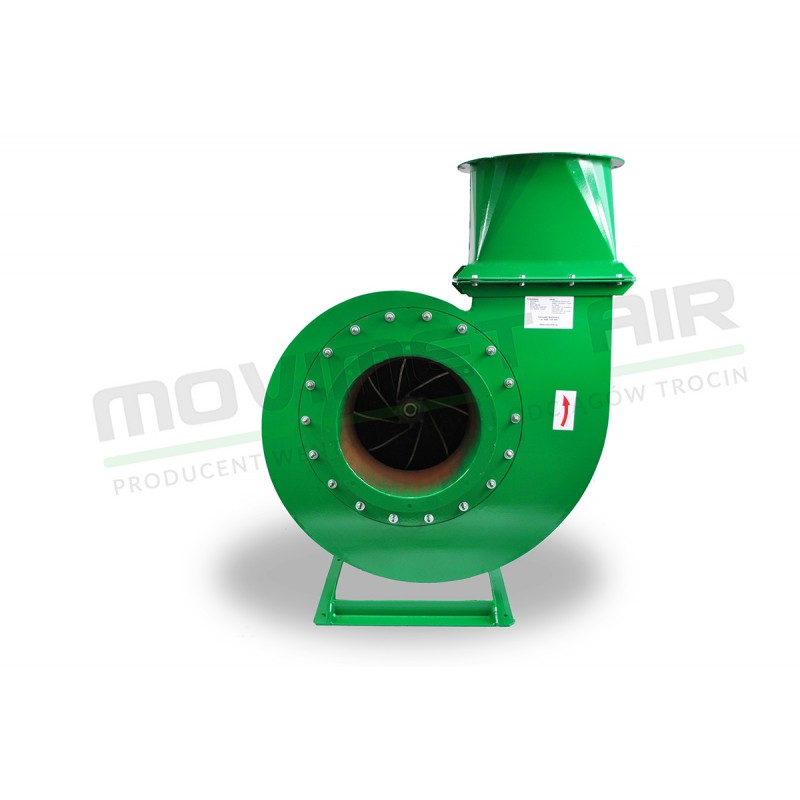

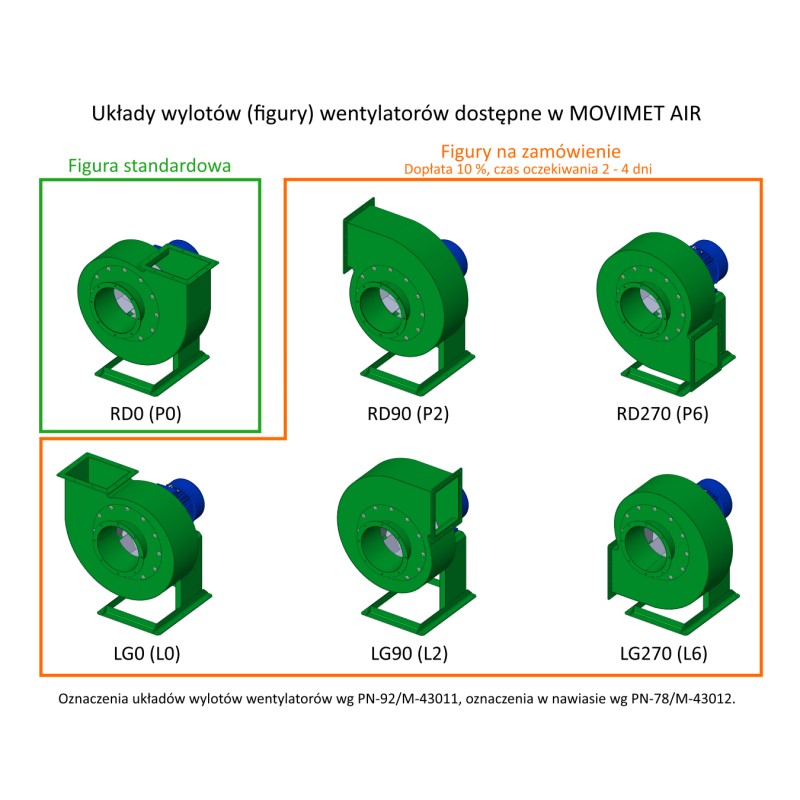

Fans available in stock are in the made figure shown in the photos (RD 0). Other figures (rotation and/or mirror image) are made to order (please contact us by phone or e-mail).

Unlike many other manufacturers, the outlet adapter for round cross section is included in the price of the fan.

The inlet and outlet of the fan are adapted as standard for connection of black steel pipes equipped with flanges for screwing on 8 screws, which ensures a durable secure connection. It is possible to adapt the inlet and outlet spigot to other connection methods, such as for turned-edge pipes connected by a band. If you have any questions about the WMT-15 fan, feel free to contact us directly.

WMT fans are available in standard version (without additional marking) and in modified versions, described in the table below.

Modifications can be combined, e.g. WMT-15 WC H.

Modification designation

Characteristics

Example application

WC

Version with increased pressure

Transport of plastics, granulates, ground waste

H

Rotor with double-layer blades with wear-resistant steel caps, wear-resistant steel casing wrap

3-shift operation, recycling industry, transport of wood chips, high concentration of material

PO

Additional sealing to prevent vapor from the transported medium from reaching the motor bearings

Moist film flake transport, pellet cooler steam extraction, washer waste transport

PTO

Additional sealing and heat rejection to limit heat transfer to the motor

Pneumatic conveying at elevated temperatures (consider WMST or WMPT fans for more demanding applications)

K

Rectangular housing allowing installation in any orientation in space

Run in a built in larger system or unusual pipeline layout

Data sheet

Nominal inlet diameter [mm] 350
Nominal outlet diameter [mm]. 350
Rotor type transportable, self-cleaning
Motor power [kW]. 15.0
Power supply 3x400 V, 50 Hz
Engine speed [rpm]. 2915
Engine efficiency class IE3 (Premium Efficiency)
In the price of the product outlet adapter for connecting round pipe
The product does not include power cord and switch
Joining method flanged, with screws
Work configuration suction, discharge or suction and discharge
