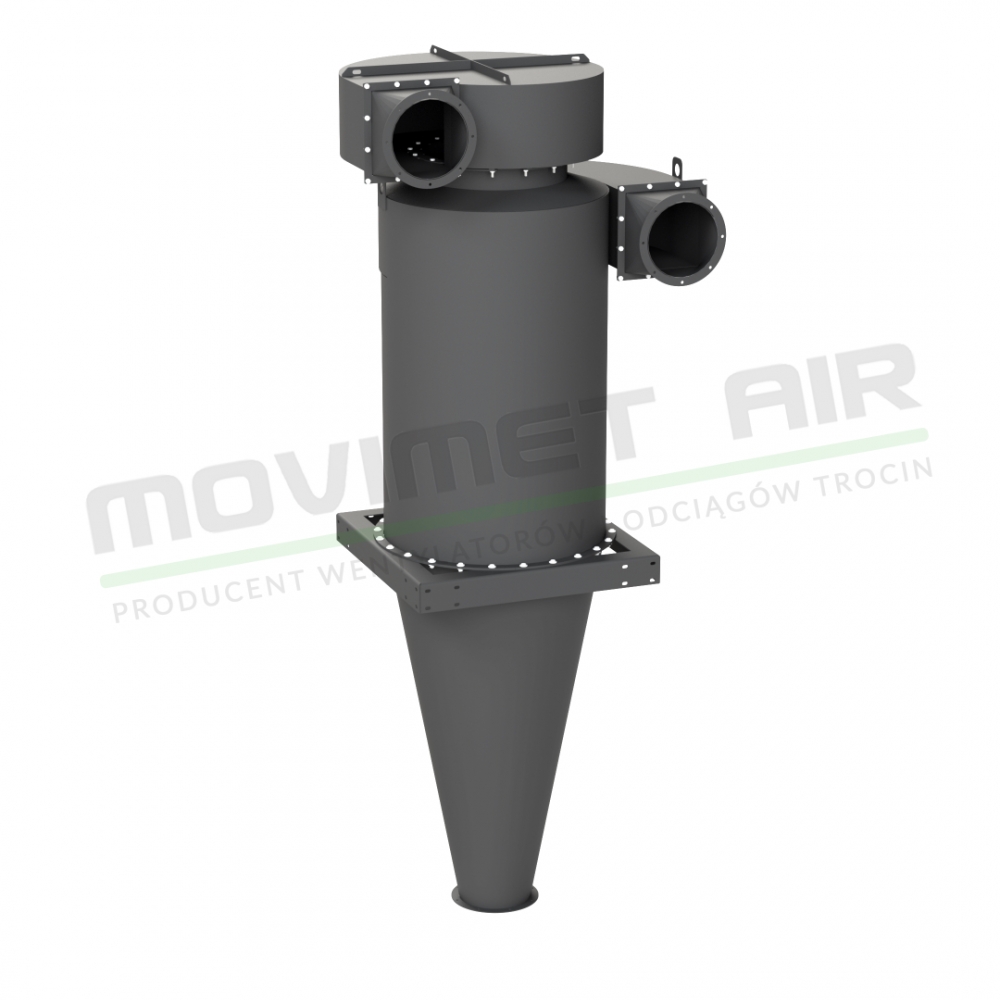

Cyclone C-2000 fi 450 with return spiral

The cyclone with a diameter of fi 450 mm is a component of the dust collection system, which separates sawdust and other solid particles from the transported air with high efficiency. The air is introduced into the interior of the device, where the centrifugal force causes the separation of heavier fractions and their discharge through the lower outlet. The cleaned air stream (which may contain fine particles that could not be separated) is directed to the upper outlet, and in the version with a return spiral - after filtration, it can be reintroduced into the room, reducing heat loss and improving the energy efficiency of the installation.

Key design features

• Diameter fi 450 mm and capacity up to 2,000 m³/h - suitable for smaller dust collection systems (usually single-station).

• Precisely designed inlet duct - reduces air resistance, improving flow rate and separation efficiency.

• Can be installed in positive-pressure and negative-pressure systems - adapting to different types of industrial installations.

Application benefits

• Efficient dust removal - cyclones allow building systems that effectively remove sawdust and other pollutants, improving air quality in the workplace.

• Energy savings - the return spiral allows warm air to be redirected to the fine filters and reused, reducing heating costs.

• Reduced load on the final filters (when the cyclone is used as a pre-dust collector) - larger fractions are separated in the cyclone, which extends the life of the remaining components of the dust collection system.

• Durability for intensive operation - design adapted to long-term operation in demanding industrial conditions.

Application in industry

The cyclone is widely used in the woodworking industry - in sawmills, carpentry plants, furniture factories and other places where effective removal of sawdust and dust is necessary. It can function as a stand-alone dust removal device or be part of a larger filtration/dust collection system.

Note: it is not a substitute for final filtration - finer particles may require additional cleaning in the filtration system.

Thanks to its design, the device works well in professional dust collection systems, supporting the sawdust extraction process and improving the efficiency of the plant.
